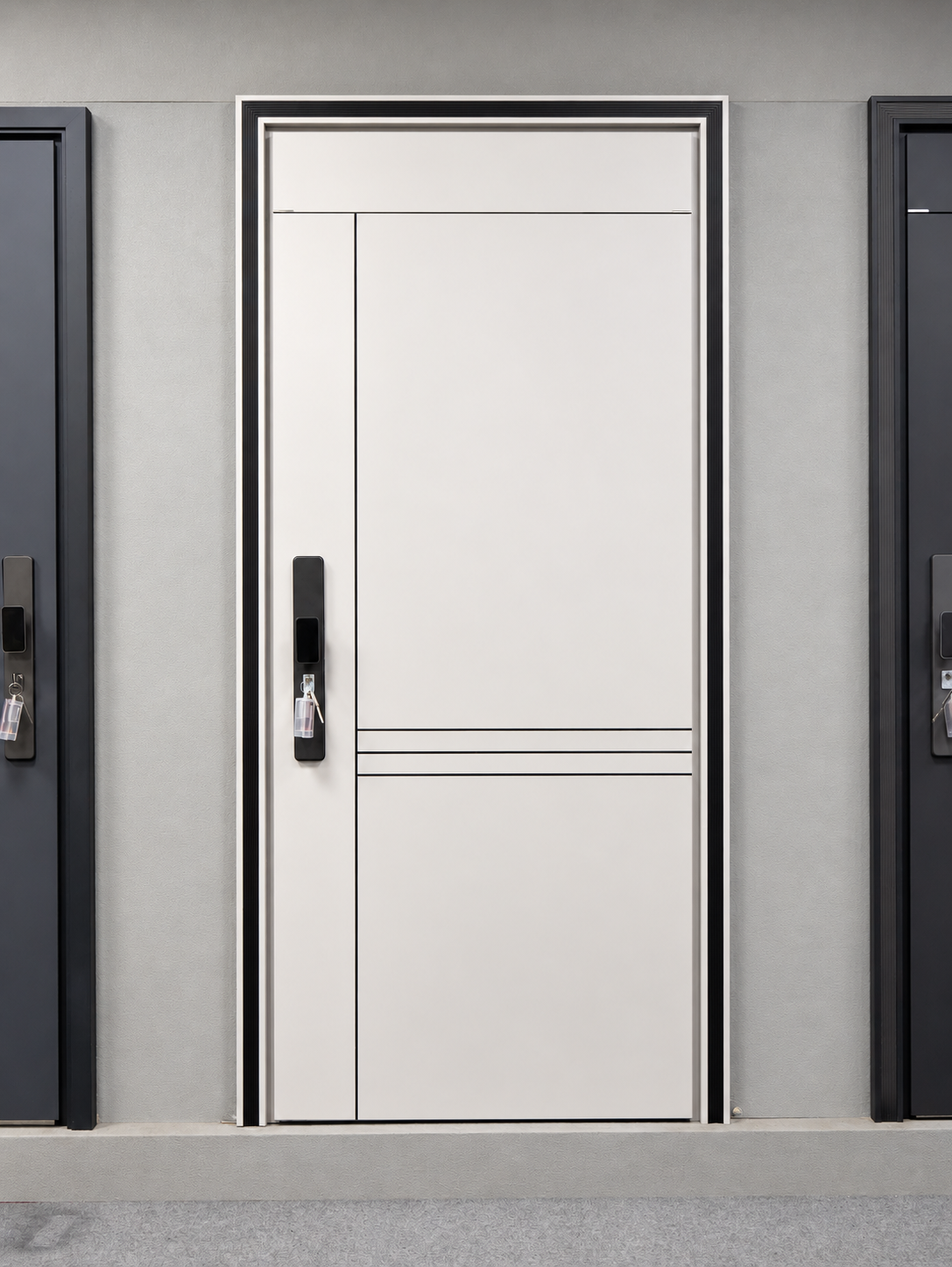

Baiyueguang · Single-leaf door

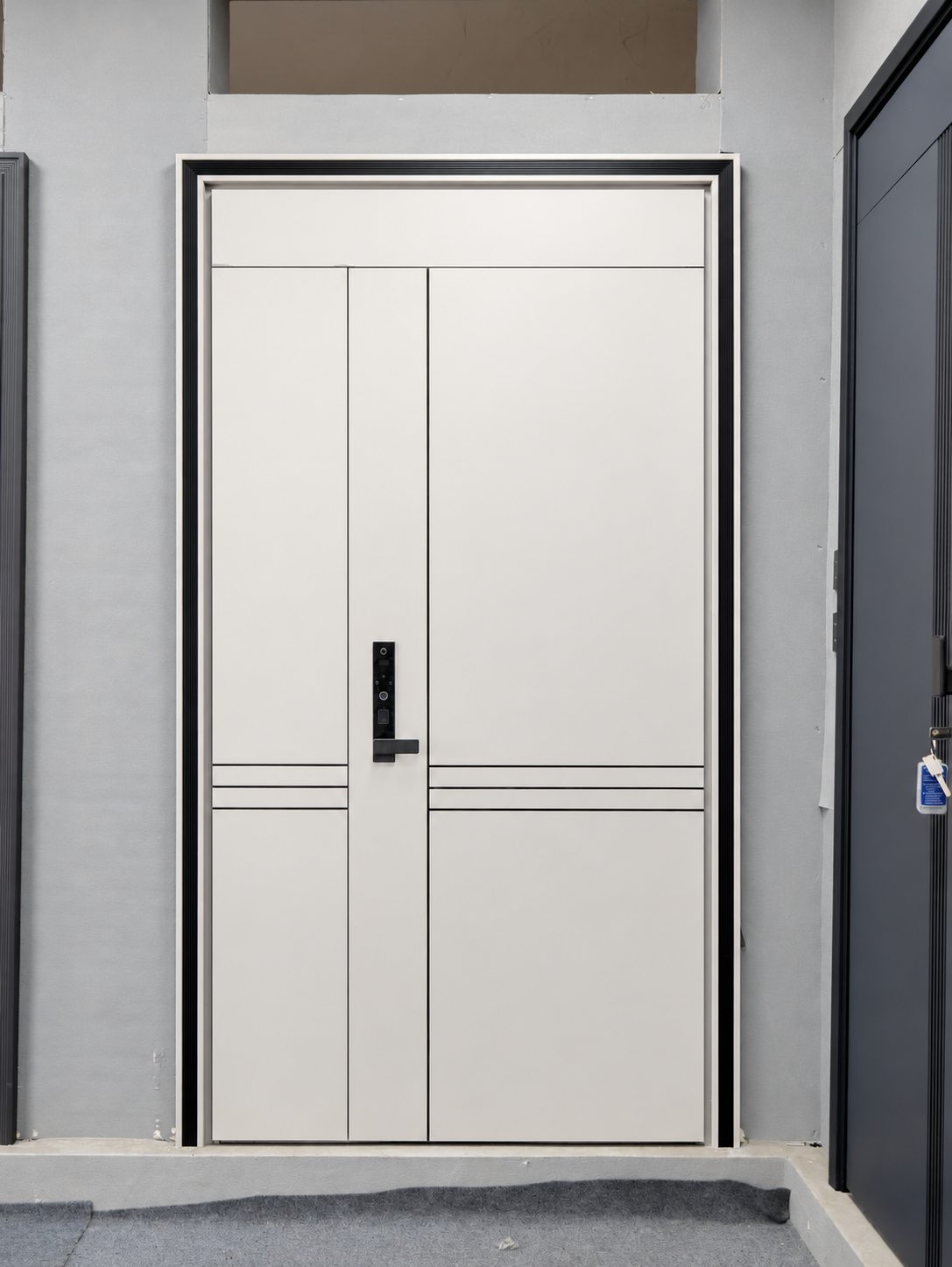

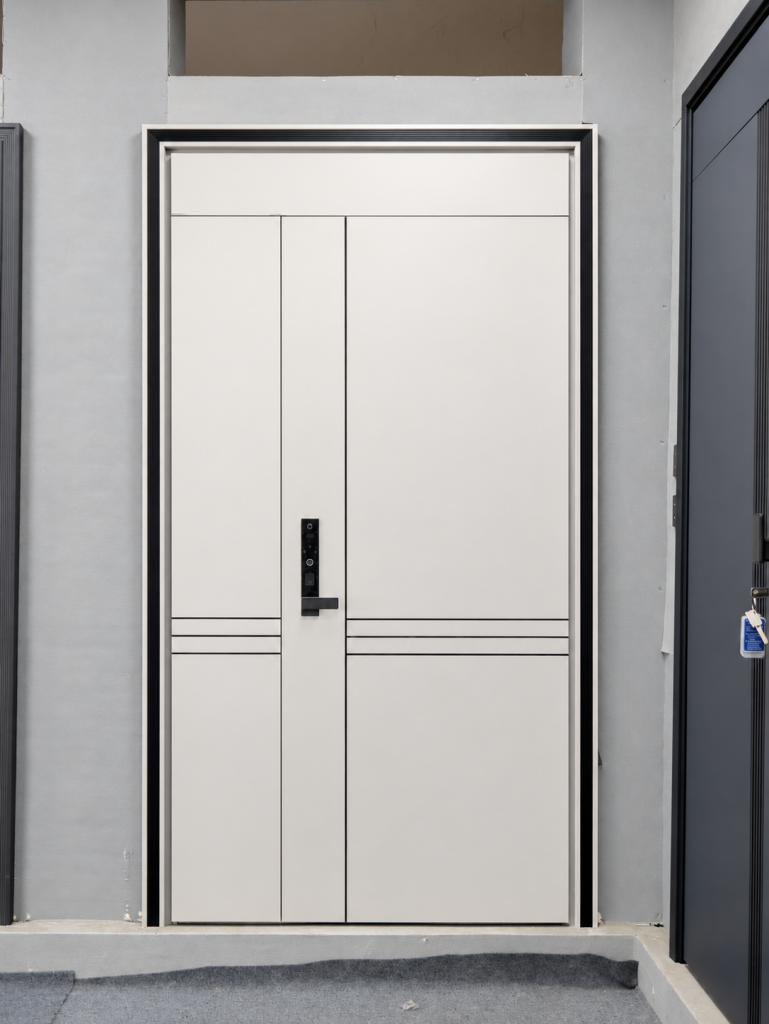

Baiyueguang · Unequal double-leaf door
← All products 1.0/2.0

Baiyueguang

Zinc-Iron Security Entrance Door

Light-colored door face with aluminum profile accents. Please contact us to confirm configuration and availability.

View specifications
Model
Baiyueguang
Material
1.0/2.0 zinc-iron alloy (1.0 mm door leaf / 2.0 mm frame)
Finish
Light-colored door face with aluminum profile accents
Locking
Quick-action lock body with simultaneous latch and bolt release

Detail views

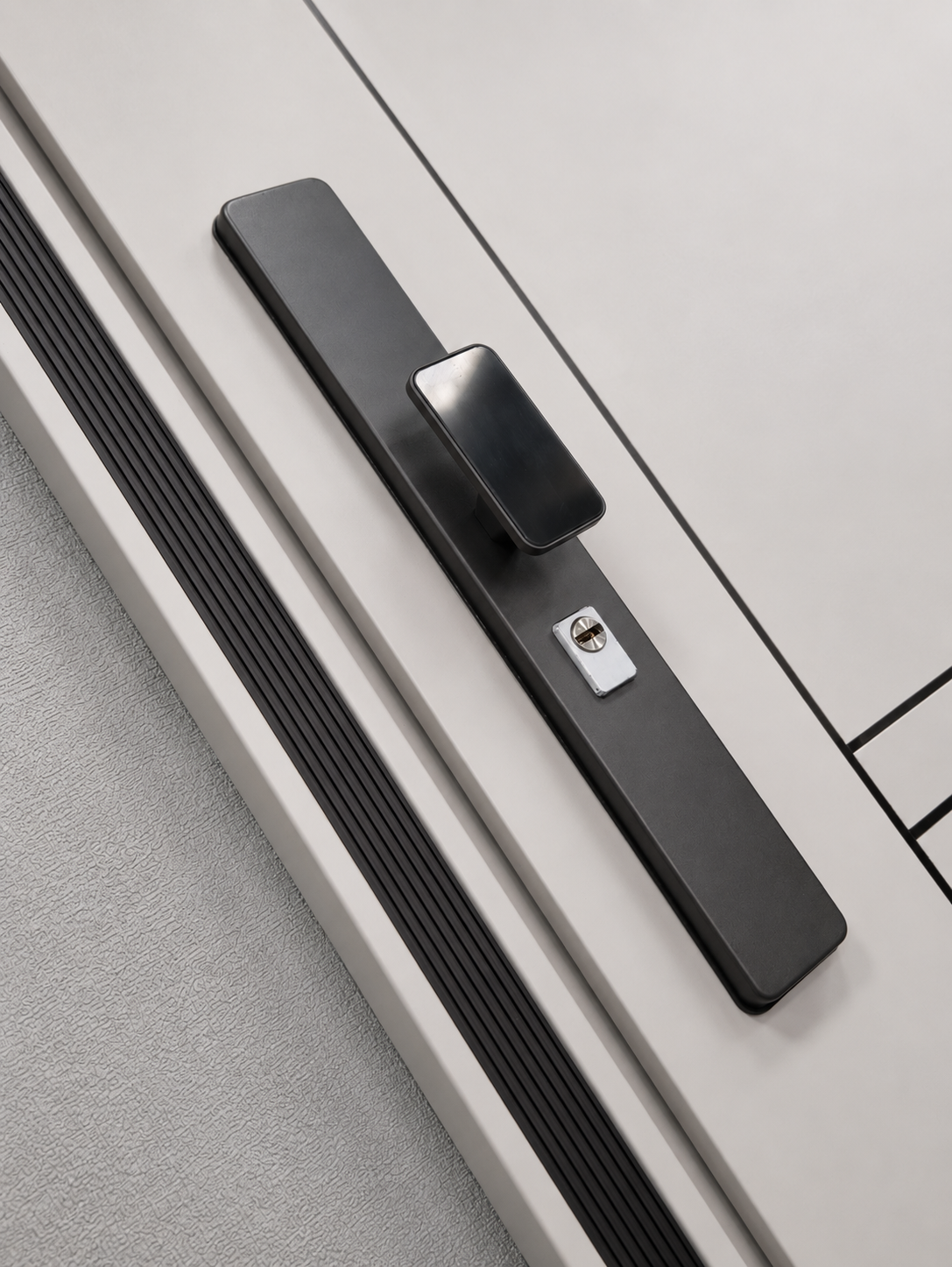

Lock and light-colored door face.

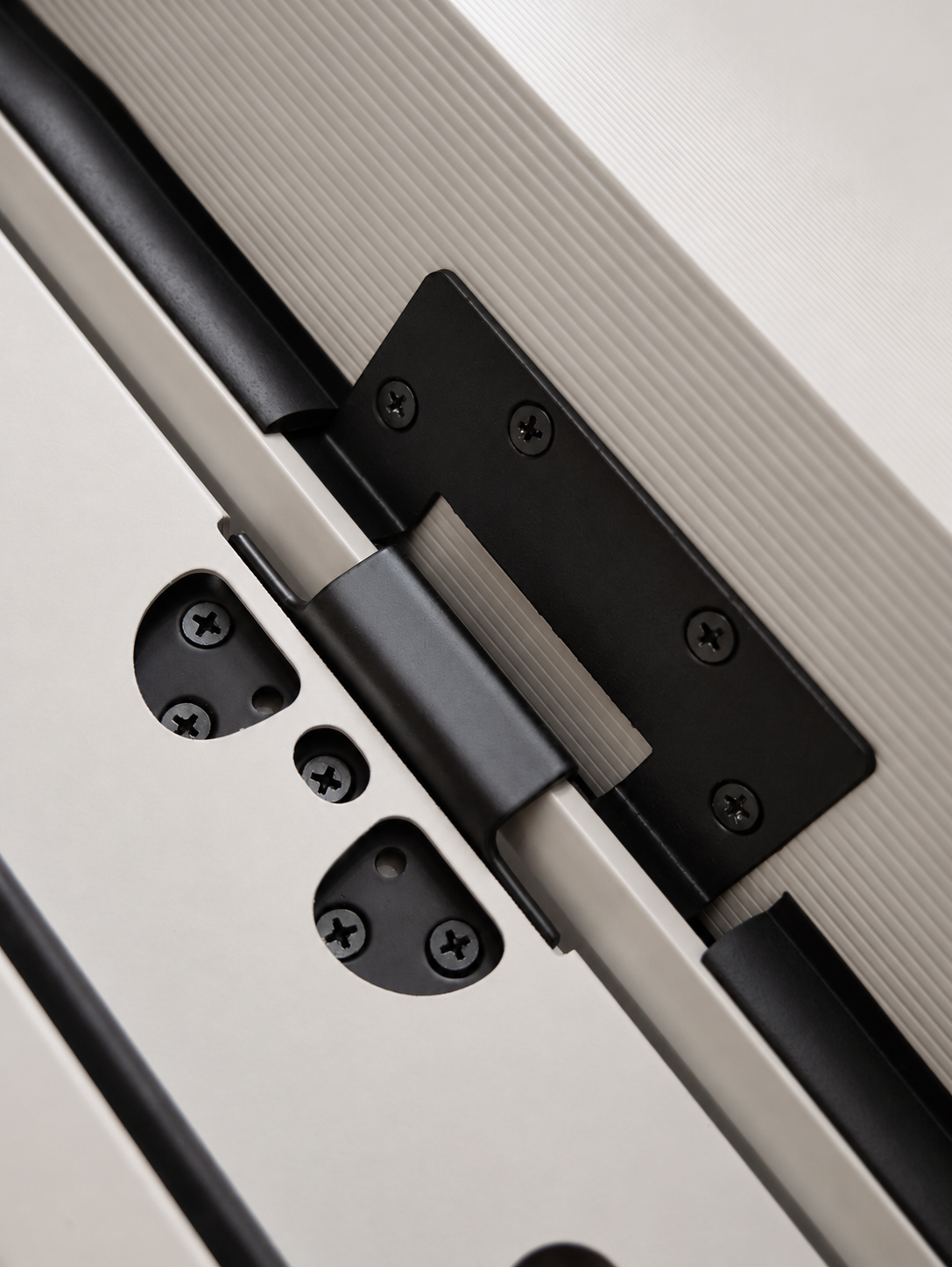

Hinge installation detail.

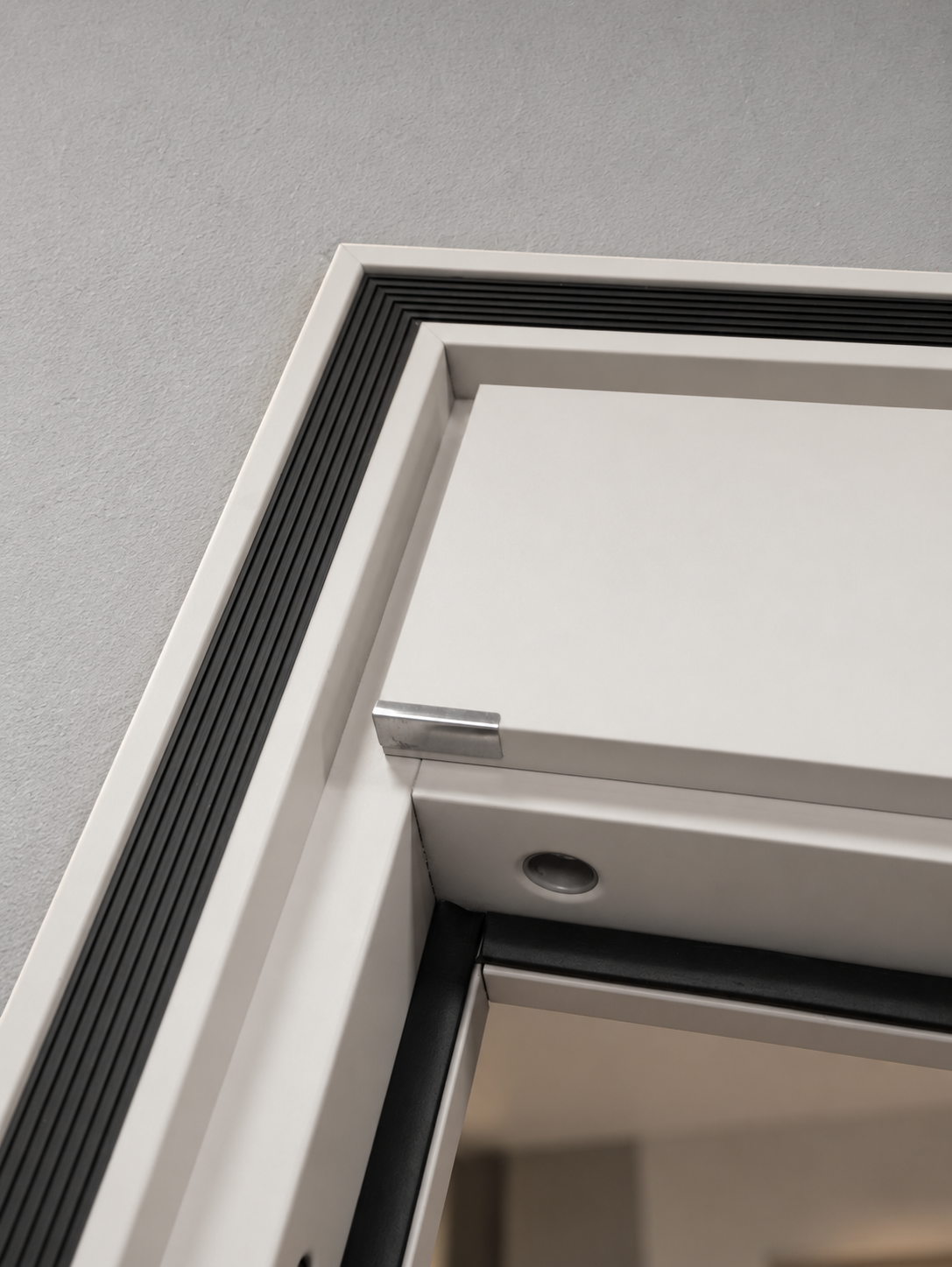

Frame, door leaf and seal contact area.

SIZE TABLE

One table,
every size this model comes in.

All figures are in millimetres (mm) and refer to the door opening. If your numbers are outer-frame or leaf sizes, tell us which one before we quote.

Width＼Height205021502250
860●－－
960●●●
1050●●●
1160●●●

The "yes / no" marks above are not live stock and can move with production and material batches. Which sizes can be made, and how many, is confirmed through our discussion with you.

Unit
Millimetres (mm)
Send together with your enquiry
Opening width × height, door type, handing, quantity and destination
BASE SPECIFICATION

A clear starting point
for your quotation.

Final specifications depend on size, destination requirements and selected hardware.

Product Information

Model
Baiyueguang

Door and Hardware

Material
1.0/2.0 zinc-iron alloy (1.0 mm door leaf / 2.0 mm frame)
Frame
Frame with inset aluminum profiles
Finish
Light-colored door face with aluminum profile accents
Lock
Quick-action lock body with simultaneous latch and bolt release
Opening
Outward / inward opening, subject to selected size
Door styles shown
Single-leaf / unequal double-leaf door
Door thickness
100 mm door thickness
Sill
Double stainless-steel sill
Sizes and configuration
Please contact us to confirm configuration and availability.
Infill
Partial rock-wool infill
Outward-opening sizes (H × W, mm)
2050 × 860 / 2050 × 960 / 2050 × 1050 / 2050 × 1160 / 2150 × 960 / 2150 × 1050 / 2150 × 1160 / 2250 × 960 / 2250 × 1050 / 2250 × 1160
Inward-opening sizes (H × W, mm)
2050 × 1050 / 2050 × 1160 / 2150 × 960 / 2150 × 1050
WHY THIS PLATFORM

Designed to sell clearly.
Built to customize efficiently.

01

Export-ready platform

Stable structure and repeatable production suitable for distributor and project programs.

02

Flexible appearance

Adapt panel language, color, smart lock, hardware and branding without rebuilding the whole system.

03

Project support

Drawing review, quotation breakdown, sample confirmation and shipment coordination from one contact.

DOOR TYPES & HANDING

Set the type and handing
before the price.

Door type and handing go on the order with a diagram; handing follows the convention of standing outside, facing the opening.

Leaf Single leaf Leaf ×1 Elevation is a concept drawing, not a photo of this door. Leaf Leaf and a half Leaf ×2 Elevation is a concept drawing, not a photo of this door. Leaf Double leaf Leaf ×2 Elevation is a concept drawing, not a photo of this door. FixedLeaf Single with sidelight Leaf ×1 + Sidelight ×1 Elevation is a concept drawing, not a photo of this door. LeafFixedFixed Double with two sidelights Leaf ×2 + Sidelight ×2 Elevation is a concept drawing, not a photo of this door. FixedLeaf Single with transom Leaf ×1 + Transom ×1 Elevation is a concept drawing, not a photo of this door. FixedFixedLeaf Single with sidelight and transom Leaf ×1 + Sidelight ×1 + Transom ×1 Elevation is a concept drawing, not a photo of this door.

Pick a type and the elevation updates to match.

NEXT STEP

Send your size, quantity and destination.

We will confirm suitable models and options.
